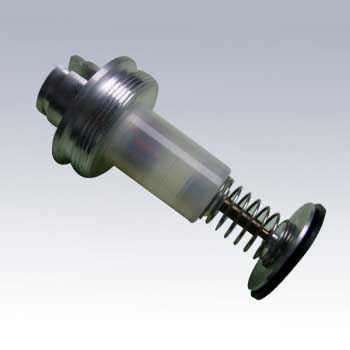

RDLP25.5-A
MAXIMUM CURRENT (LIMIT):1500MA
MAXIMUM HOLDING CURRENT: 80/240MA
MINIMUM DROPOUT CURRENT:10/110MO
VALVE SEAT:ALUMINIUM, BRASS
HOUSING: POLYAMIDE
SPINDLE : STAINLESS STEEL
SEAL : NBR,SILICON,VITON
TYPES OF CONNECTION TO THERMOCOUPLE : FIXING NUT , COAXIAL, FASTON
MAX.TORQUE (TIGHTEN SEAT) : 25NM
MAX.TORQUE (THERMOCOUPLE NUT) :4NM
WORKING TEMPERATURES :
-NBR: 80癈
-SILICONE OR VITON : 150癈
|
|
|
|
|
