RDLP18-AMAX WORK TEMPRATURE :150 DEGREE VALVE DISK:ALUMINUM SEAL:SILICON RUBBER SPINDLE : STAINLESS STEEL HOUSING:POLYAMIDE VALVE SEAT:ALUMINUM HOLD-IN CURRENT: <=160MA DROP-OUT CURRENT: >=50MA INNER RESISTANCE: 24MOHM+/-10% FULL COMPRESSIVE SPRING FORCE: 6N+/-10% TEMP.:-10-80 DEGREES CELSIUS OPEN TIME: <2S SHUT TIME:<12S LEAKAGE:15KPA,MAX/MIN<0.06ML

Products Detail

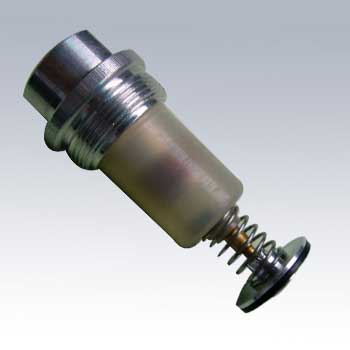

RDLP18-A
MAX WORK TEMPRATURE :150 DEGREE
VALVE DISK:ALUMINUM
SEAL:SILICON RUBBER
SPINDLE : STAINLESS STEEL
HOUSING:POLYAMIDE
VALVE SEAT:ALUMINUM

HOLD-IN CURRENT: <=160MA
DROP-OUT CURRENT: >=50MA
INNER RESISTANCE: 24MOHM+/-10%
FULL COMPRESSIVE SPRING FORCE: 6N+/-10%
TEMP.:-10-80 DEGREES CELSIUS
OPEN TIME: <2S
SHUT TIME:<12S
LEAKAGE:15KPA,MAX/MIN<0.06ML
