Products Detail

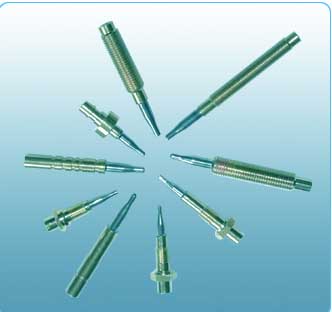

TH-010
THERMOCOUPLE HEADS
E.M F (OPEN CIRCUIT) AT 650癈 @ 30 (MV)
AVERAGE RESISTANCE DEPENDING ON LENGTH
(L) IN CM 8.6 +0.22L(M0HM)

BENDING RADIUS = 15 (MM)
MAX. TORQUE TO TIGHTEN NUT @ 30(NCM)
MAX. TEMPERATURE ON THE THERMOELEMENT @ 650癈
MAX. TEMPERATURE AT THE CONNECTION (SLEEVE) @250癈 MAX.
TEMPERATURE ON THE THERMOCOUPLE @ 120癈
