Products Detail

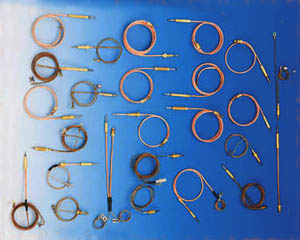

TH-009
EFM OPEN CIRCUIT AT 650&ORDM;C: APPROX. 30MV.
AVERAGE RESISTENCE MW 10+0.24XL (L=LONG.IN CM.)
HOLD IN TIME 2.5 SECS. (IGNITION)
DROP OUT TIME APPROX. 30 SECS. (SHUTDOWN)
BENDING RADIUS (TC TUBE) 25 MM.
MAX. TORQUE TO TIGHTEN NUT 0.3 MKP
MAX. TEMPERATURE ON THE TIP. 800 &ORDM;C
MAX. TEMPERATURE ON THE SLEEVE. 250&ORDM;C
TIP MATERIAL. (ALUMINIUM COATING OPTIONAL) INCONEL-600 (NICR)/KONSTANTAN
SLEEVE MATERIAL BRASS
CONDUCTORS (TUBE, WIRES) COPPER
CONNECTIONS NUT OR SPECIAL PLUG
LENGHT (FROM 200 TO 1500 MM.) ON REQUEST
SLEEVE ON REQUEST
