Products Detail

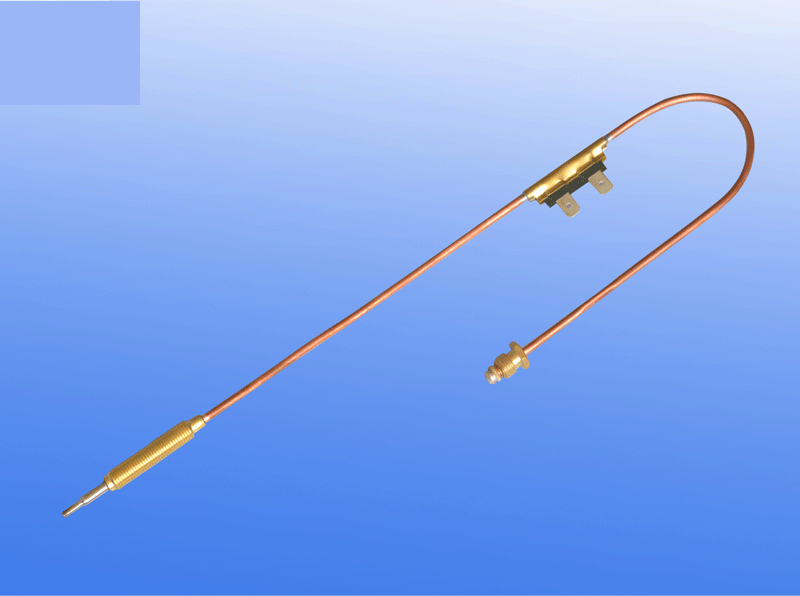

TH-002
THE LENGTH OF THERMOCOUPES IS VARIED
ACCORDING TO REQUEST OF CUSTOMERS.

WE COULD AS CLIENT DEMANDS FOR DIFFERENT LENGTH.
TECHNICAL CHARACTERISTICS:
OPEN CIRCUIT OUTPUT VOLTAGE:
HEAT UP 10 SECS 15 MV AT 650 DEGREE
AVERAGE RESISTENCE 33 M OHM +-10%(20 DEGREE)
HOLD IN TIME 2.5 SECS. (IGNITION)
DROP OUT TIME APPROX. 30 SECS. (SHUTDOWN)
MINIMUN BENDING RADIUS LESS THAN 20 MM
MAXIMUM FITTING ADJUSTMENT TORQUE: 4 NM.
MAXIMUM TEMPERATURE ON THE TIP. 800 DEGREE
MAXIMUM TEMPERATURE ON THE SLEEVE. 250 DEGREE
TIP MATERIAL. (ALUMINIUM COATING OPTIONAL) INCONEL-600 (NICR)/KONSTANTAN
SLEEVE MATERIAL BRASS
CONDUCTORS (TUBE, WIRES) COPPER
CONNECTIONS NUT OR SPECIAL PLUG
STANDARD LENGTHS FROM 250 TO 1500 MM.
SPECIAL LENGHTS ON REQUEST.
SLEEVE ON REQUEST
