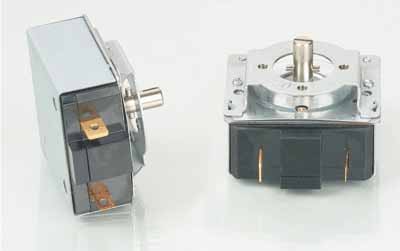

ZDKJ-Y
TIMER WITHOUT RING
TIME SETTING RANGE FROM 5 MIN TO 180 MIN
THE ENDURABLE LIFE IS 10000 TIMES OR MORE,
AT 6 TIMES/MIN
THE TIME TOLERANCE IS FROM ± 5% TO ± 10%
THE WORKING DIRECING CAN BE SET IN ANY DIRECTION ITEM SPRCIFICATIONS
TIME SETTING RANGE
5 MIN, 7 MIN, 15 MIN, 30MIN, 45MIN, 60MIN, 75MIN, 90 MIN, 100MIN,120MIN, 180MIN,
CONTACT CAPACITY 125V AC 13A;250V AC 6.5A
TIME SETTING DIRECTION CW.
WORKING DIRECTION CCW.
OPERATING TEMPERATURE RANGE
-10° C---+125° C (-10° C---+150° C)
WORKING ANGLE (A)270°± 5°(B)280°± 5°
INSULATION RESISTANCE 100OR MORE
(500V DC MEGGER)
WITHSTAND VOLTAGE 1 MINUTE MIN. AT 1800V AC
ENDURABLE LIFE 10000 TIMES OR MORE,
AT 6 TIMES/MINUTE.
OPERATING TORQUE 1.0---3.2KG.CM
RELEASE TOLERANCE 1.0---5.0KG.CM
TIME TOLERANCE ± 5 %-------± 10%
|
|
|
|
|
