Z032

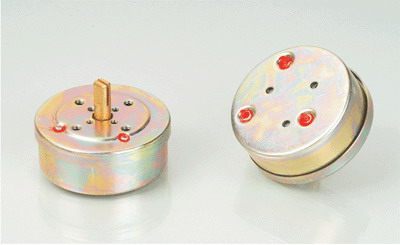

OVEN TIMER
TIME SETTING RANGE FROM 5 MIN TO 180 MIN
THE ENDURABLE LIFE IS 10000 TIMES OR MORE,
AT 6 TIMES/MIN
THE TIME TOLERANCE IS FROM ± 5% TO ± 10%
THE WORKING DIRECING CAN BE SET IN ANY DIRECTION
TIME SETTING RANGE 5MIN, 20MIN,30MIN,60MIN
TIME SETTING DIRECTION CW.
WORKING DIRECTION CCW.
OPERATING TEMPERATURE RANGE
-10° C---+125° C (-10° C---+150° C)
WORKING ANGLE (A)270°± 5°(B)280°± 5°
ENDURABLE LIFE 10000 TIMES OR MORE,
AT 6 TIMES/MINUTE.
OPERATING TORQUE 1.0---3.2KG.CM
RELEASE TOLERANCE 1.0---5.0KG.CM
TIME TOLERANCE ± 4 %
|
|
|
|
|
