Products Detail

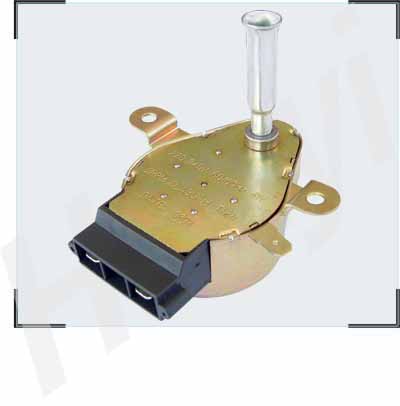

ZKX-E
OVEN MOTOR
SPECIFICATION
INSULATION RESISTANCE : >100MQ
NAME:OVEN SYNCHRONOUS MOTOR
INSULATION STRENGTH:1500V/1MIN.
OPERATING VOLTAGE:AC115V / AC230V
INSULATION CLASS:H
POWER FREQUENCY:60HZ / 50HZ
TEMPERATURE RISE:<60K
INPUT POWER:4W,5W,6W
ROTATION:CW OR CCW CW/CCW
OUTPUT SPEED:1.5-5RPW
OUTPUT TORQUE:1600MN.M 2RPM
OPERATING TEMPERATURE:
-10 TEMPERATURE - +125 TEMPERATURE
